DEXTER E-Z Flex® Tandem Equalizer Suspension System #K71-653-06
$428
DEXTER E-Z Flex® Tandem Equalizer Suspension Kit #K71-653-06
Overview
The DEXTER E-Z Flex® Tandem Equalizer Suspension Kit is designed for use with 1-3/4″ wide, 26″ double eye springs on trailers featuring 35″ axle centers and axles with a capacity of up to 8,000 lbs.
Features
- Equalizer Replacement: The kit includes E-Z Flex® equalizers (PN 013-144-03) which can replace existing equalizers (PN 013-122-02).
- Equalizer Dimensions:
- A = 7-3/4″
- B = 2-7/8″

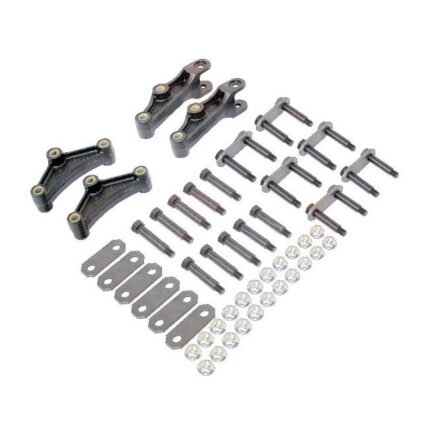

Kit Includes
- (12) Nut, Hex Lock (006-092-01)
- (2) Shackle Bolt – 9/16″ (007-003-01)
- (4) Step Bolt, Short Wet – 7/16″ (007-187-00)
- (2) Equalizer Assembly (013-144-03)
- (8) Bushing, Bronze (014-077-00)
- (4) Shackle Link with 2-1/4″ eye centers (018-024-01)
- (4) Shackle Link Assembly (018-026-00)
- (2) Hex Lock Nut 9/16″ – 18 Plated (006-007-01)
- (1) Instruction Sheet (059-867-00)
DEXTER E-Z Flex® Tandem Equalizer Suspension Kit #K71-653-06
The DEXTER E-Z Flex® Tandem Equalizer Suspension Kit is designed for use with 1-3/4″ wide, 26″ double eye springs on trailers featuring 35″ axle centers and axles rated up to 8,000 lbs. This kit includes E-Z Flex® equalizers (Part Number: 013-144-03) that can replace the existing equalizers (Part Number: 013-122-02).
Equalizer Dimensions:
- A: 7-3/4″
- B: 2-7/8″
Kit Includes:
- (12) Nut, Hex Lock (Part Number: 006-092-01)
- (2) Shackle Bolt – 9/16″ (Part Number: 007-003-01)
- (4) Step Bolt, Short Wet – 7/16″ (Part Number: 007-187-00)
- (2) Equalizer Assembly (Part Number: 013-144-03)
- (8) Bushing, Bronze (Part Number: 014-077-00)
- (4) Shackle Link with 2-1/4″ eye centers (Part Number: 018-024-01)
- (4) Shackle Link Assembly (Part Number: 018-026-00)
- (2) Hex Lock Nut 9/16″ – 18 Plated (Part Number: 006-007-01)
- (1) Instruction Sheet (Part Number: 059-867-00)
Upgrade your trailer’s suspension with the DEXTER E-Z Flex® kit for improved performance and durability!
