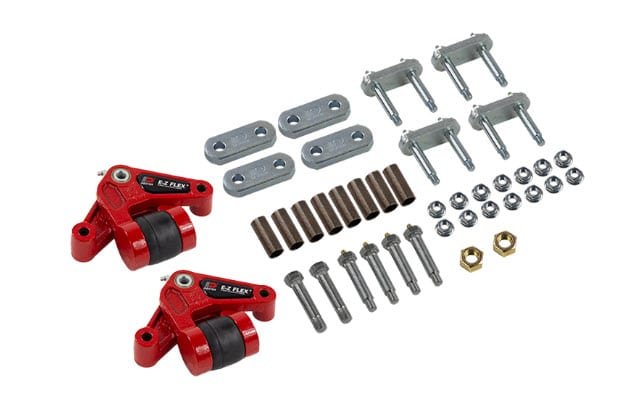

DEXTER E-Z Flex® Tandem Equalizer Suspension System #K71-652-06
$362
DEXTER E-Z Flex® Tandem Equalizer Suspension Kit #K71-652-06
Overview
The Dexter E-Z Flex® Tandem Equalizer Suspension Kit is designed for trailers equipped with 1-3/4″ wide, 26″ double eye springs, specifically for those with 33″ axle centers and axles rated up to 6000 lbs.
Compatibility
- Replaces Equalizers: Can replace existing PN 013-104-02 equalizers.
- Equalizer Dimensions:
- A = 5-3/4″
- B = 2″
Kit Includes
- (12) Hex Lock Nut (006-092-01)
- (2) Shackle Bolt – 9/16″ (007-003-01)
- (4) Step Bolt – 9/16″ (007-187-00)
- (2) Equalizer Assembly (013-143-03)
- (8) Bushing, Bronze (014-077-00)
- (4) Shackle Link with 2-1/4″ eye centers (018-024-01)
- (4) Shackle Link assembly (018-026-00)
- (2) Hex Lock Nut 9/16″-18 Plated (006-007-01)
- (1) Instruction Sheet (059-867-00)
This kit provides essential components for enhancing suspension performance on compatible trailers.
DEXTER E-Z Flex® Tandem Equalizer Suspension Kit #K71-652-06
The Dexter E-Z Flex® Tandem Equalizer Suspension Kit is designed for use with 1-3/4″ wide, 26″ double eye springs on trailers featuring 33″ axle centers and axles rated up to 6000 lbs. This kit includes E-Z Flex® equalizers (Part Number: 013-143-03), which can effectively replace the existing equalizers (Part Number: 013-104-02).
Equalizer Dimensions
- A: 5-3/4″
- B: 2″
Kit Includes
- (12) Hex Lock Nut (Part Number: 006-092-01)
- (2) Shackle Bolt – 9/16″ (Part Number: 007-003-01)
- (4) Step Bolt – 9/16″ (Part Number: 007-187-00)
- (2) Equalizer Assembly (Part Number: 013-143-03)
- (8) Bushing, Bronze (Part Number: 014-077-00)
- (4) Shackle Link with 2-1/4″ eye centers (Part Number: 018-024-01)
- (4) Shackle Link assembly (Part Number: 018-026-00)
- (2) Hex Lock Nut 9/16″-18 Plated (Part Number: 006-007-01)
- (1) Instruction Sheet (Part Number: 059-867-00)
Upgrade your trailer’s suspension for enhanced performance with the DEXTER E-Z Flex® Tandem Equalizer Suspension Kit!
