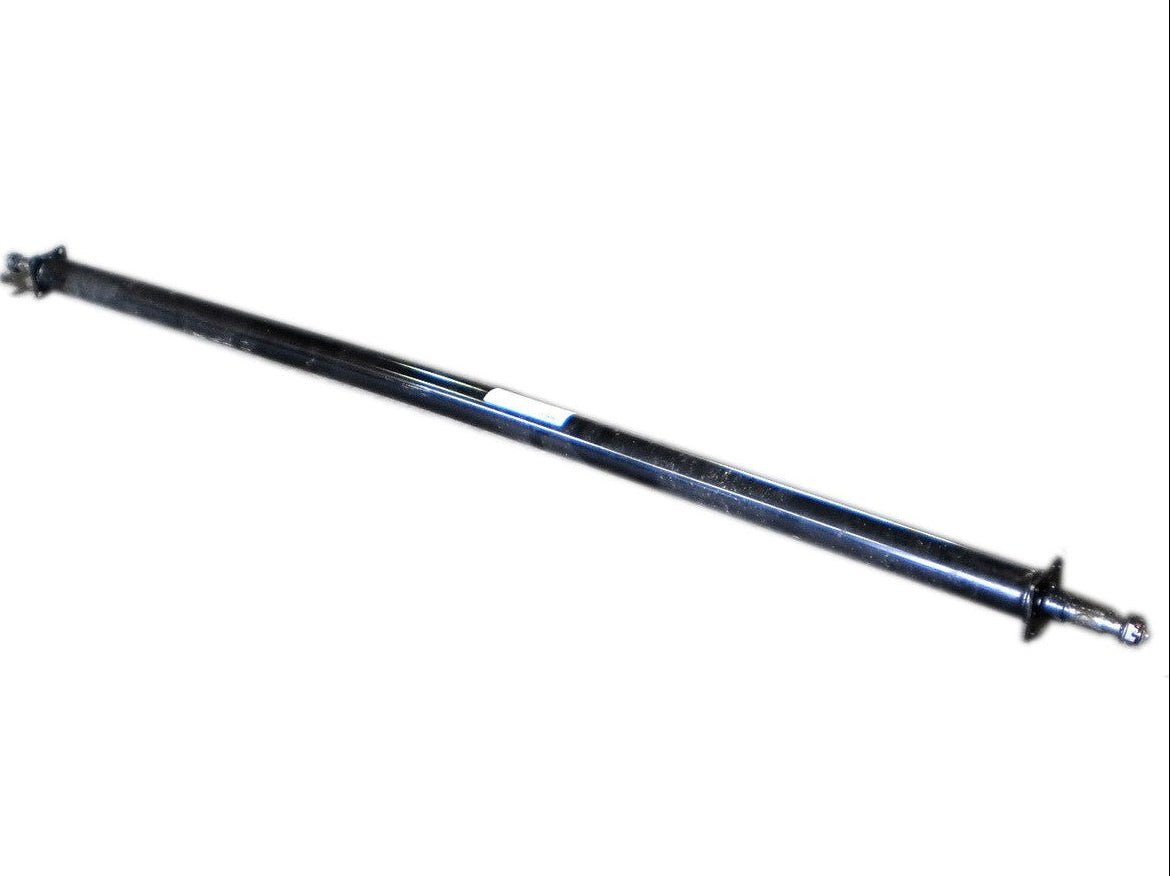

DEXTER 60″ Round Tube Straight Trailer Axle (2,000 lb.) #6419898

Product Overview

The DEXTER 60″ Round Tube Straight Trailer Axle is designed for durability and performance. This axle features a 1-3/4″ diameter round tube construction with a sleek black painted finish and a cambered design for optimal stability.

Key Features

• Load Rating: 2,000 lbs
• Track Length: 60″ (Hub Face to Hub Face)
• Spring Center: 42″ – 48″
• Overall Length: 64.75″
• Spindle Size: 1-1/16″ x 1-1/16″ EZ-Lube Spindles

Installation Details

All axles are equipped with:

• Spindle nuts
• Nut retainers
• D-washers
• Spring seats (Note: Spring seats must be welded for complete installation)

Camber Information

This axle is cambered, meaning it has a slight bow that allows for better weight distribution when loaded. It is essential to mount all cambered axles with the center bow facing upwards for optimal performance.

For more details on installation, click the link for Axle Measuring Instructions.

Upgrade your trailer with the reliable DEXTER 60″ Round Tube Straight Trailer Axle today!
